Horizon X-Ray System

Product Price :

Product Brochure

Download Product Catalog

Affordable Performance, Efficient Design

The new CARESTREAM HORIZON X-ray System delivers what you need today—with an eye toward the future of your radiology practice. This simple and highly affordable analog X-ray system provides all the key functionality you need to diagnose with confidence and provide exceptional patient care.

Designed for small- to mid-sized imaging centers, orthopedic facilities, urgent care centers and hospitals, the HORIZON X-ray System offers exceptional image quality to boost productivity and superb flexibility for all major exams. Plus, the system is digital-ready for a complete CR/DR-print solution as your radiology needs evolve.

Additional-info
Details Of Item

The Horizon X-ray System is a high-frequency, state-of-the-art radiography unit designed for efficient and high-quality diagnostic imaging in hospitals, diagnostic centers, and orthopedic clinics. Built with robust design and advanced digital technology, it ensures consistent performance, low radiation exposure, and excellent image clarity.

1. X-Ray Generator

Type: High-frequency (typically 40–100 kHz)
Output Power: Ranges between 30 kW to 100 kW, depending on the model
Benefits: Produces constant X-ray output, minimizing motion artifacts and improving image quality

2. X-Ray Tube

Anode Type: Rotating anode for better heat dissipation
Focal Spot: Dual focal spot (e.g., 0.6 mm & 1.2 mm) for fine and general radiography
Heat Capacity: High thermal capacity (often above 200 kHU) to support long or multiple exposures

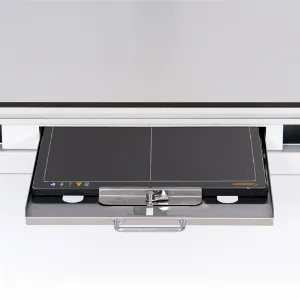

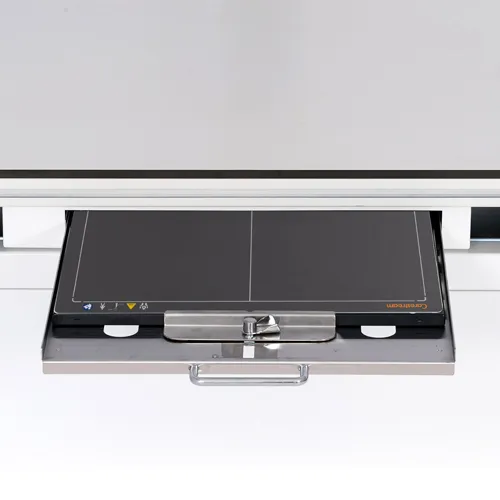

3. Digital Detector (DR Version)

Type: Flat Panel Detector (FPD), wireless or tethered
Technology: a-Si (Amorphous Silicon) or CsI (Cesium Iodide) scintillator
Image Resolution: High pixel matrix (e.g., 3000 x 3000 pixels or more)
Pixel Pitch: Typically around 140–175 microns
Image Acquisition Time: Less than 5 seconds
Bit Depth: 14–16 bit for high grayscale accuracy

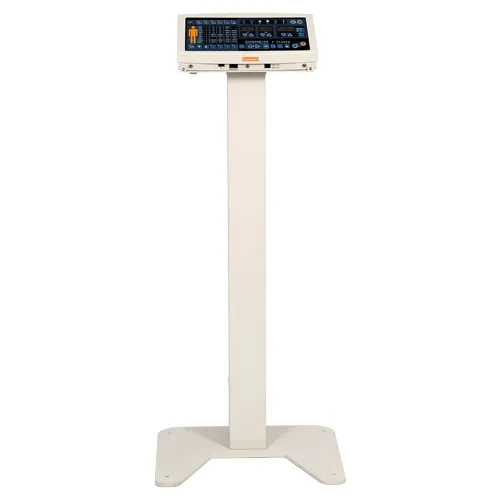

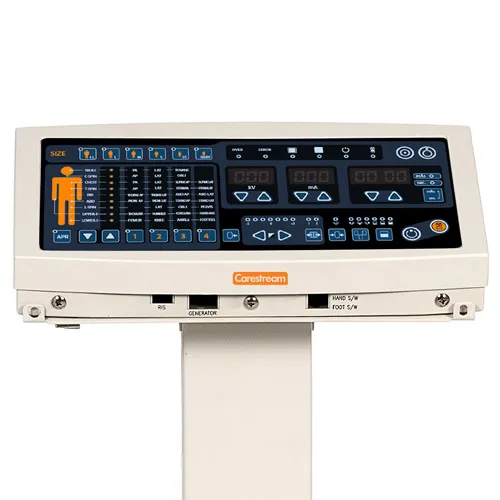

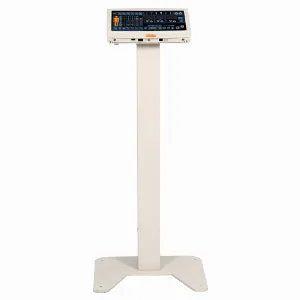

4. Control Console

User Interface: Touchscreen with customizable presets
Exposure Modes: Manual, APR (Anatomical Programmed Radiography)
Connectivity: DICOM compliant, PACS and RIS integration
Software: Image processing with tools for contrast enhancement, edge sharpening, zoom, and measurement

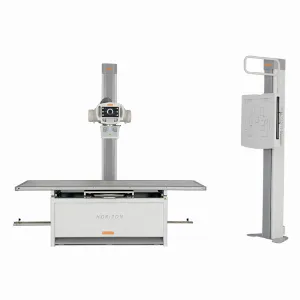

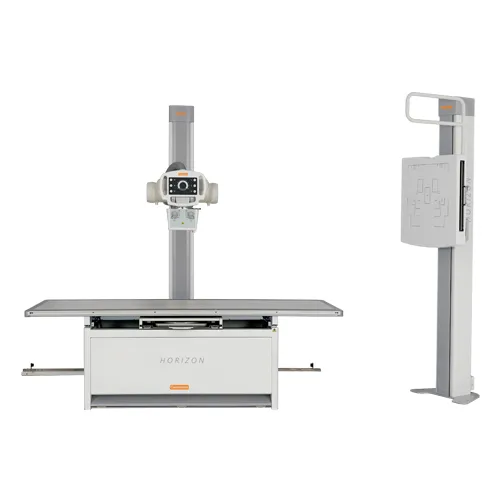

5. Mechanical Design & Movement

Table: Motorized or manual floating table with high load capacity
Bucky Stand: Vertical Bucky for chest and spine exams
Tube Stand: Ceiling or floor-mounted with manual or automatic positioning
Auto-tracking: Available in high-end versions for synchronized movement between tube and detector

6. Safety & Compliance

Radiation Dose Control: AEC (Automatic Exposure Control), dose display, and pediatric protocols
Standards: IEC, AERB, and CE certified components
Grid: Removable grid for pediatric or low-dose imaging
